Kennametal

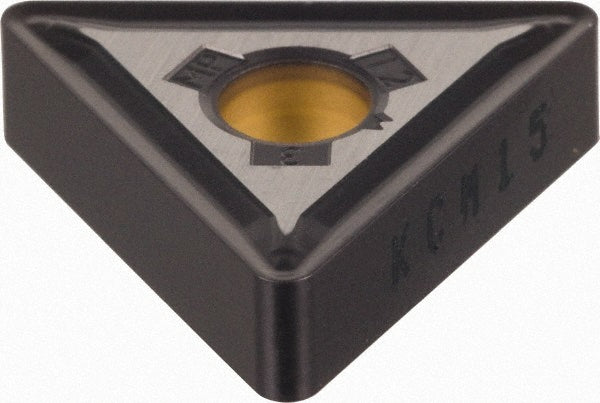

T - Triangle 1/2" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3760972
MFR# 3760972ISO/ANSI# TNMG220412Series KENLOC
$27.43List $33.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCM25
MaterialCarbide
CoatingTiN
Description
The Kennametal 3760972 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTNMG433
Ansi size code433
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle60
Industry standard numberTNMG433MP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number3760972
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
