Kennametal

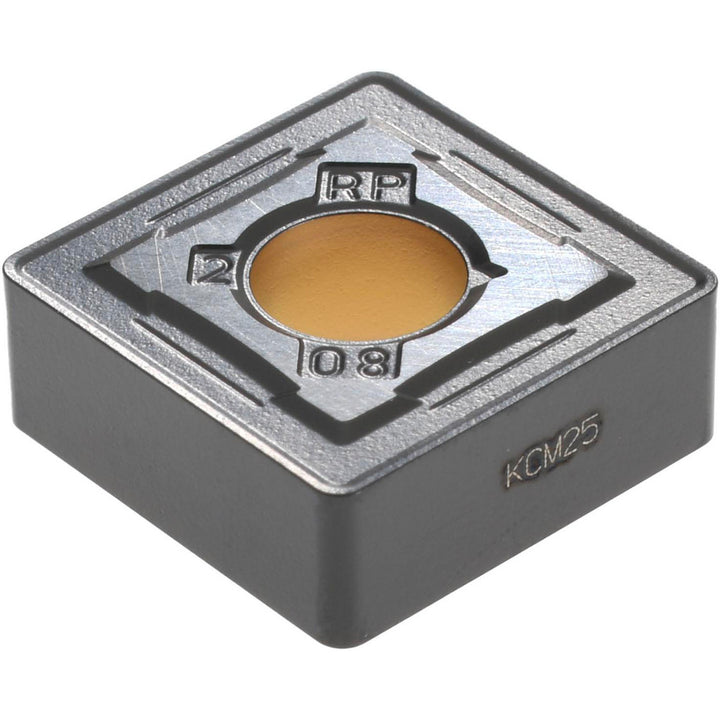

SNMG432 Carbide Insert, Grade KCM25, TiN - Kennametal 3761014
MFR# 3761014ISO/ANSI# SNMG120408Series KENLOC
$23.52List $28.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKCM25
MaterialCarbide
CoatingTiN
Description
The Kennametal 3761014 is a SNMG432 carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeSNMG432
Ansi size code432
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle90
Industry standard numberSNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Iso insert codeSNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3761014
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
