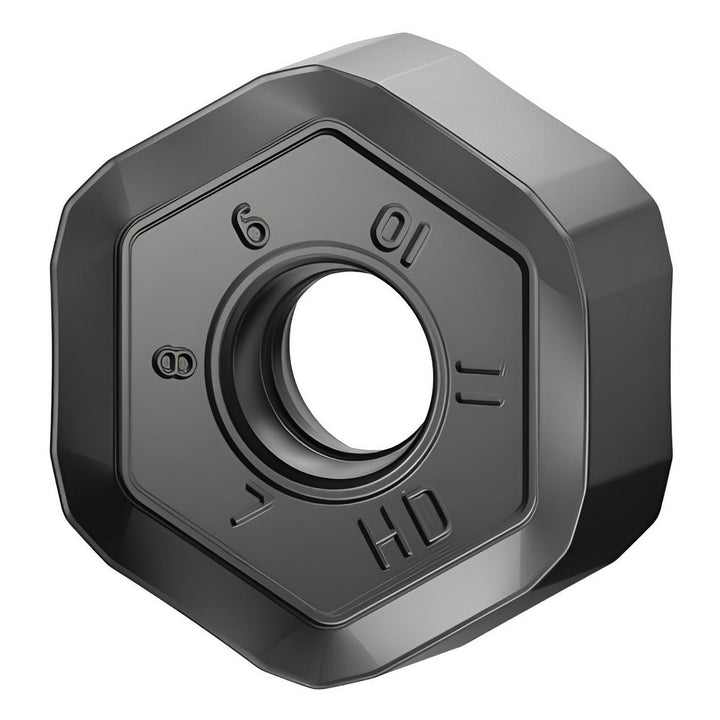

HNPJ090543ANSNHD Solid Carbide Insert, Grade KCK15, TiN - Kennametal 3763729
MFR# 3763729ISO/ANSI# HNPJ090543ANSNHDCat# HNPJ090543ANSNHDSeries HNPJ
$34.91List $42.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3763729 is a HNPJ090543ANSNHD solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Ansi codeHNPJ53511ANSNHD
Chip breakerHD
Coating finishTiN
Coating processMTCVD
Corner radius in11/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code53511
Insert styleHNPJ
Iso codeHNPJ090543ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ090543ANSNHD
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Maximum depth of cut0.3340
Multi use toolYes
Number of cutting edges12
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2142
Thickness range0.2000 to 0.2200
Width in5/8
