Kennametal

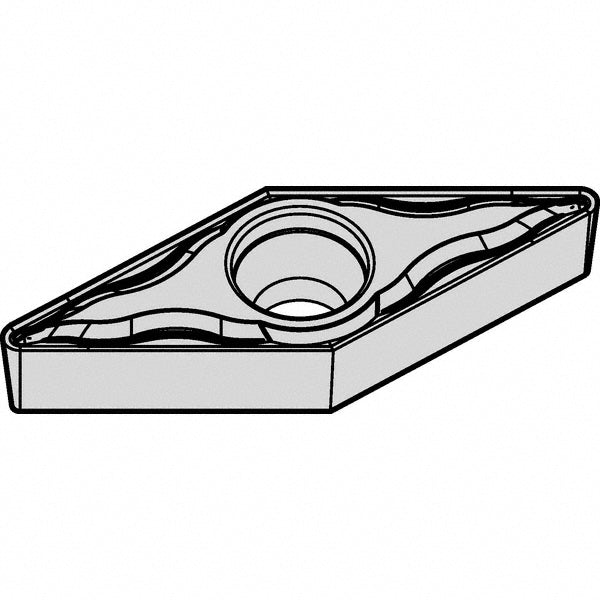

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3769130
MFR# 3769130ISO/ANSI# VBMT110304Series Screw-On
$34.96List $42.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCM15
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3769130 is a carbide indexable insert, grade KCM15, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVBMT221
Ansi size code221
Chip breakerFP
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle35
Industry standard numberVBMT221FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110304
Iso size code110304
Length range0.7000 - 10.0000
Manufacturers catalog number3769130
Manufacturer gradeKCM15
Material gradeC2; C3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
