Kennametal

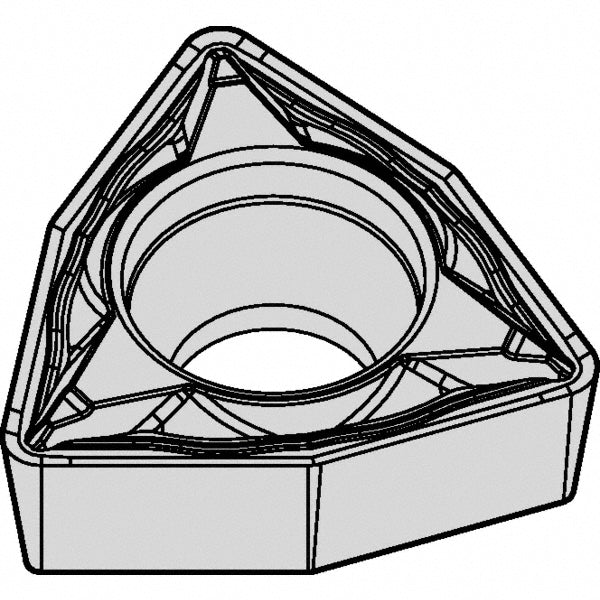

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3769175
MFR# 3769175ISO/ANSI# WCMT06T308Series Screw-On
$24.05List $29.35
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3769175 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeWCMT3252
Ansi size code3252
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberWCMT3252FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5130
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code3252
Insert styleWCMT
Insert thickness in5/32
Iso insert codeWCMT06T308
Iso size code06T308
Length range0.5000 - 0.6000
Manufacturers catalog number3769175
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
