Kennametal

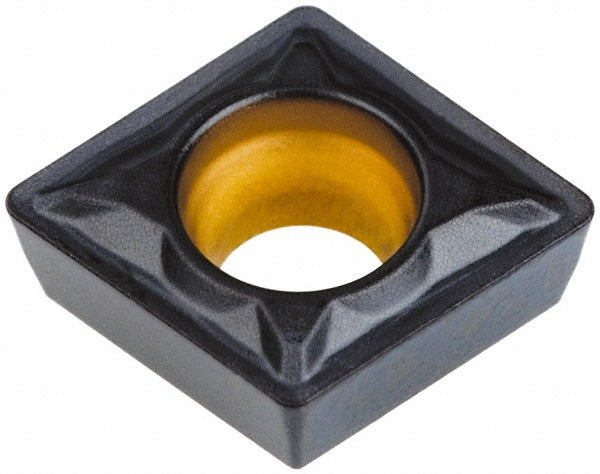

Diamond 80 1/4" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3769310
MFR# 3769310ISO/ANSI# CPMT2151FPSeries Screw-On
$25.79List $31.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769310 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle80degree
Industry standard numberCPMT2151FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCPMT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number3769310
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
