Kennametal

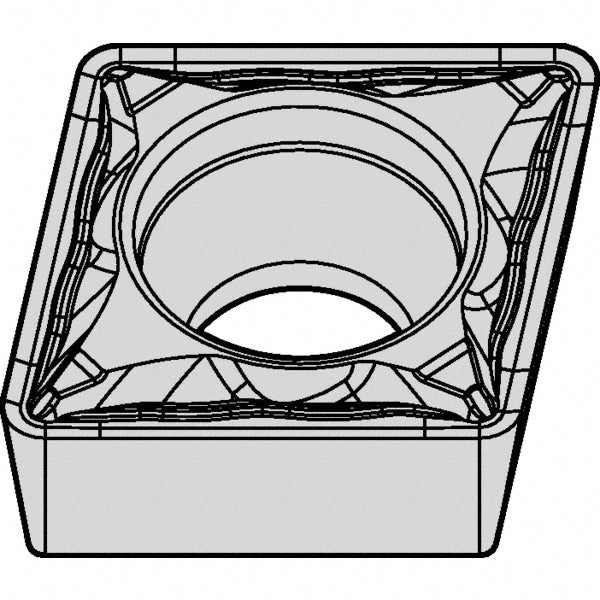

Diamond 7/32" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3769347
MFR# 3769347Series Screw-On
$23.14List $28.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeDiamond
GradeKCS10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769347 is a carbide indexable insert, grade KCS10, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ChipbreakerFP
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Hole diameter0.0984
Included angle80
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code181505
Insert styleCPMT
Length0.2224
Manufacturers catalog number3769347
Manufacturer gradeKCS10
Material gradeC3; C4
Maximum depth of cut0.0741
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO
Width0.2188
