Kennametal

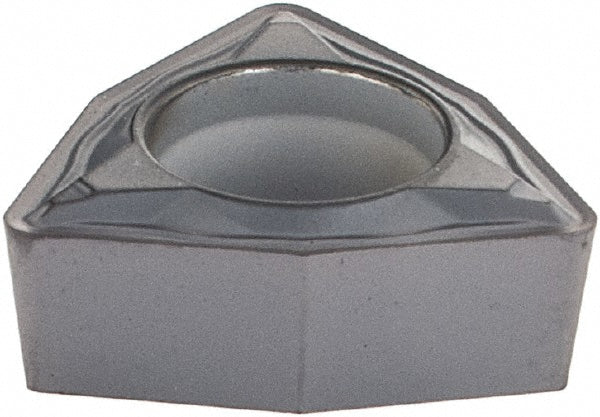

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3769408
MFR# 3769408ISO/ANSI# WCMT06T308Series Screw-On
$29.45List $35.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKCS10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769408 is a carbide indexable insert, grade KCS10, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWCMT3252
Ansi size code3252
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle80
Industry standard numberWCMT3252FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5130
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code3252
Insert styleWCMT
Insert thickness in5/32
Iso insert codeWCMT06T308
Iso size code06T308
Length range0.5000 - 0.6000
Manufacturers catalog number3769408
Manufacturer gradeKCS10
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
