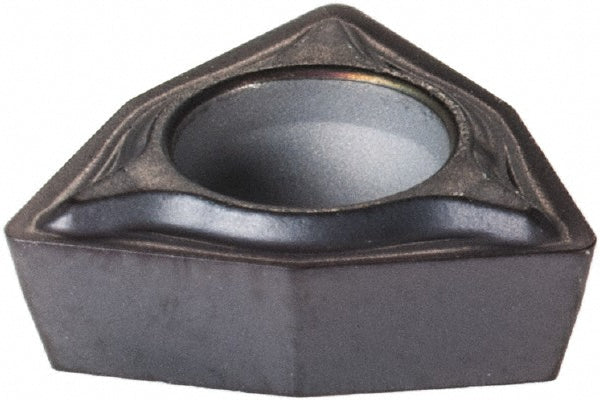

WPMT040204FP Carbide Insert, Grade KCS10, AlTiN - Kennametal 3769409
MFR# 3769409ISO/ANSI# WPMT110204Series Screw-On
$25.79List $31.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
GradeKCS10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769409 is a WPMT040204FP carbide indexable insert, grade KCS10, AlTiN coated.
Specifications
Ansi insert codeWPMT2151
Ansi size code2151
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle80
Industry standard numberWPMT2151FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3418
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code2151
Insert styleWPMT
Insert thickness in3/32
Iso codeWPMT040204FP
Iso insert codeWPMT110204
Iso size code110204
Length range0.3000 - 0.4000
Manufacturers catalog number3769409
Manufacturer gradeKCS10
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3418
Wiper edgeNo
