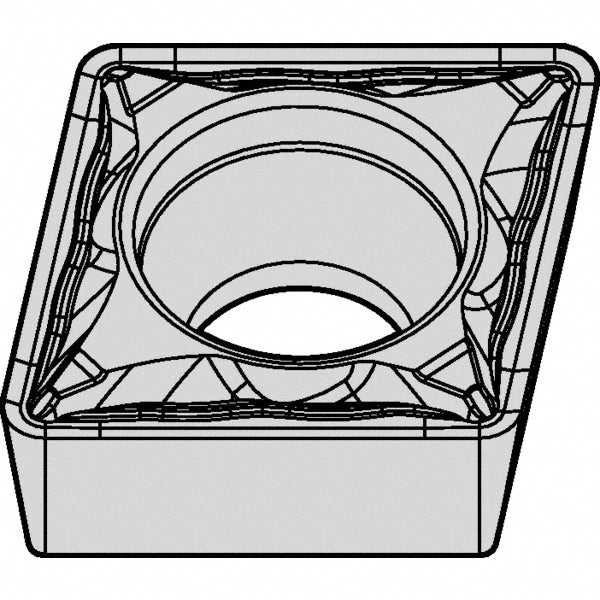

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769413

Kennametal

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769413

MFR# 3769413ISO/ANSI# CCMT060202Series Screw-On

$24.92List $30.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 3769413 is a carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCCMT21505
Ansi size code21505
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle80
Industry standard numberCCMT21505FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21505
Insert styleCCMT
Insert thickness in3/32
Iso insert codeCCMT060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturers catalog number3769413
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
