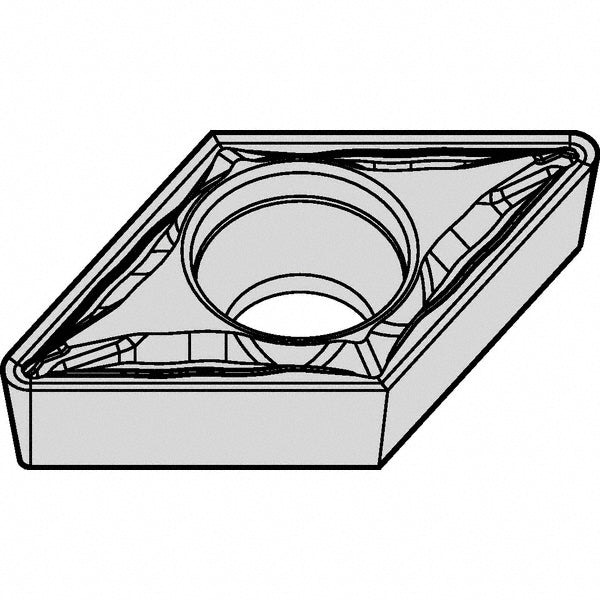

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769436

Kennametal

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769436

MFR# 3769436ISO/ANSI# DPMT070208Series Screw-On

$25.70List $31.36 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 3769436 is a carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDPMT2152
Ansi size code2152
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle55
Industry standard numberDPMT2152FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code2152
Insert styleDPMT
Insert thickness in3/32
Iso insert codeDPMT070208
Iso size code070208
Length range0.6000 - 0.6500
Manufacturers catalog number3769436
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
