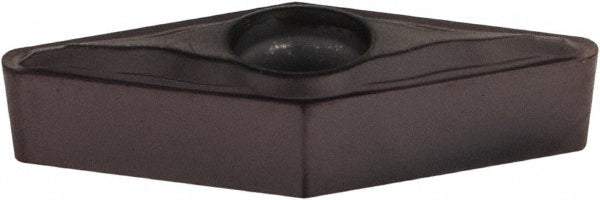

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769465

Kennametal

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769465

MFR# 3769465ISO/ANSI# VBMT110308Series Screw-On

$33.87List $41.34 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 3769465 is a carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVBMT222
Ansi size code222
Chip breakerFP
Chip breaker operationFinishing
Clearance codeB
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle35
Industry standard numberVBMT222FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110308
Iso size code110308
Length range0.7000 - 10.0000
Manufacturers catalog number3769465
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
