Kennametal

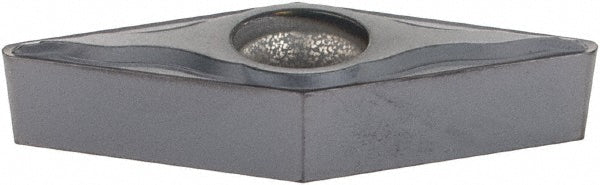

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769468
MFR# 3769468ISO/ANSI# VBMT160408Series Screw-On
$36.23List $44.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769468 is a carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVBMT332
Ansi size code332
Chip breakerFP
Chip breaker operationFinishing
Clearance codeB
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle35
Industry standard numberVBMT332FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number3769468
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
