Kennametal

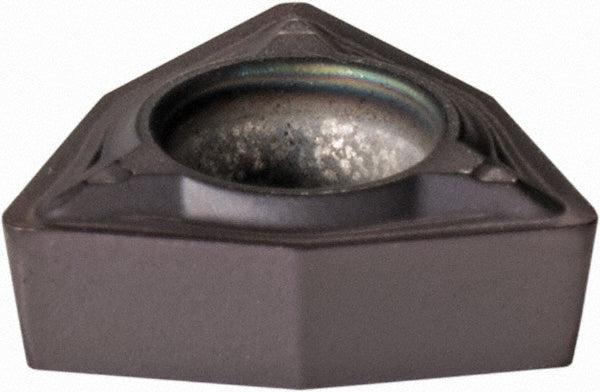

W - Trigon 80-Deg 1/4" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769469
MFR# 3769469ISO/ANSI# WCMT110204Series Screw-On
$25.58List $31.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769469 is a carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWCMT2151
Ansi size code2151
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle80
Industry standard numberWCMT2151FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3418
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code2151
Insert styleWCMT
Insert thickness in3/32
Iso insert codeWCMT110204
Iso size code110204
Length range0.3000 - 0.4000
Manufacturers catalog number3769469
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3418
Wiper edgeNo
