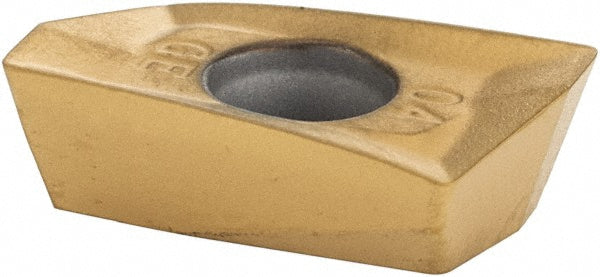

EDPT10T304PDSRGE Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3779250

Kennametal

EDPT10T304PDSRGE Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3779250

MFR# 3779250ISO/ANSI# EDPT10T304PDSRGECat# EDPT10T304PDSRGESeries EDPT

$26.33List $32.14 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 3779250 is a EDPT10T304PDSRGE solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1004SGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 1-10
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleEDPT
Iso codeEDPT10T304PDSRGE
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T304PDSRGE
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width in17/64
