Kennametal

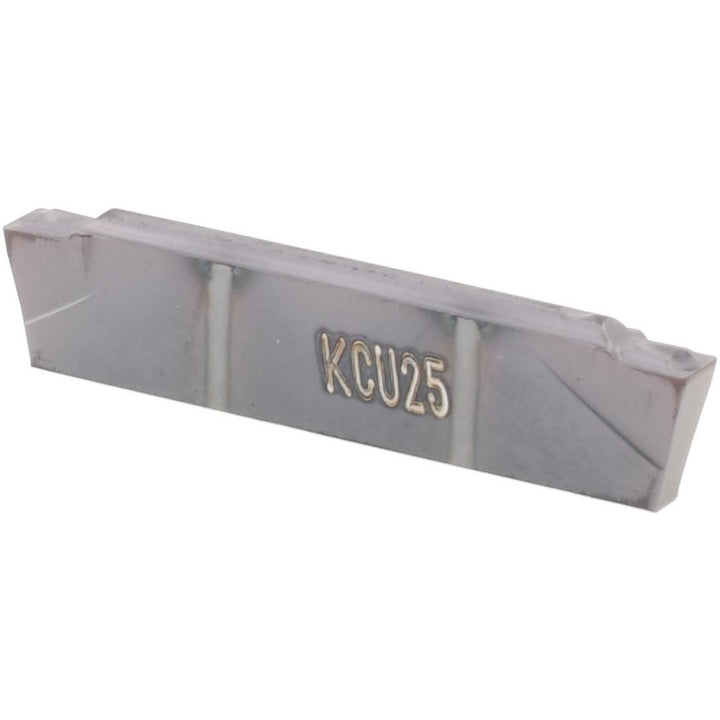

Carbide Insert, Grade KCU25, AlTiN - Kennametal 3781252
MFR# 3781252Series A4
$46.16List $56.34
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3781252 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size0200
Insert styleA4G
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0748
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.7874
RakePositive
