Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 3781282
MFR# 3781282Series A4
$43.37List $52.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

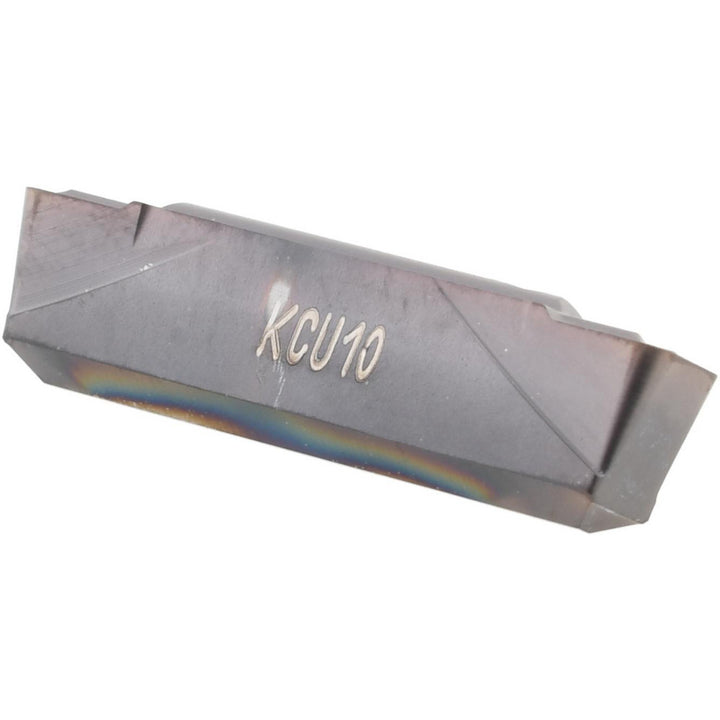

The Kennametal 3781282 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processBY; PVD
Corner radius0.0315
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size0400
Insert styleA4G
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1299
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.7874
RakePositive
