Kennametal

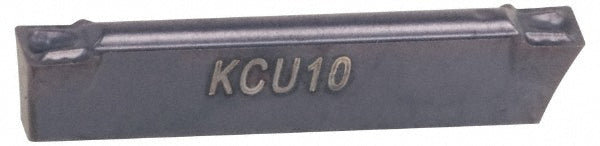

Carbide Insert, Grade KCU10, AlTiN - Kennametal 3791263
MFR# 3791263Series A4
$39.93List $48.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3791263 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processBY; PVD
Corner radius0.0079
Cutting width0.0807
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size0205
Insert styleA4G
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall length0.7933
RakePositive
