Kennametal

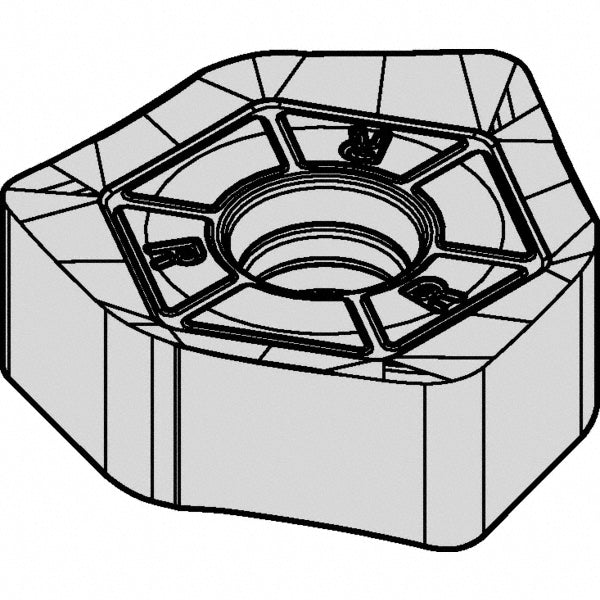

XNGJ0905ANFNLDJ3W Solid Carbide Insert, Grade KC410, TiB2 - Kennametal 3849319
MFR# 3849319ISO/ANSI# XNGJ0905ANFNLDJ3WCat# XNGJ0905ANFNLDJ3WSeries XNGJ
$46.96List $57.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTrigon
GradeKC410
MaterialSolid Carbide
CoatingTiB2
Description
The Kennametal 3849319 is a XNGJ0905ANFNLDJ3W solid carbide indexable insert, grade KC410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi codeXNGJ535ANFNLDJ3W
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in1/16
Cutter series compatibilityDodeka
Cutting edge styleWiper
Included angle degree80
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code0905
Insert styleXNGJ
Iso codeXNGJ0905ANFNLDJ3W
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberXNGJ0905ANFNLDJ3W
Manufacturer gradeKC410
Material applicationNon-Ferrous Metal
Maximum depth of cut1.7720
Multi use toolYes
Number of cutting edges6
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2169
Thickness range0.2000 to 0.2200
Width in5/8
