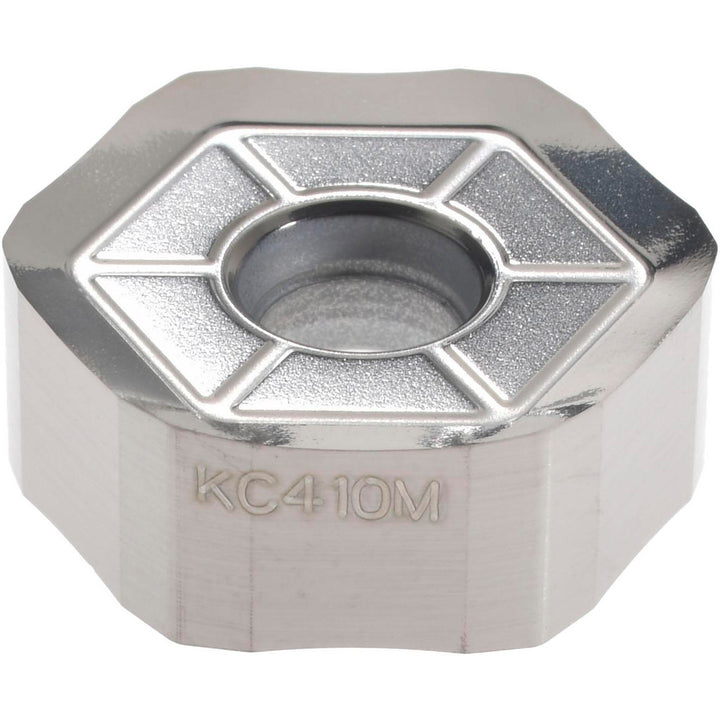

HNGJ0905ANFNLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 3849320

Kennametal

HNGJ0905ANFNLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 3849320

MFR# 3849320ISO/ANSI# HNGJ0905ANFNLDJCat# HNGJ0905ANFNLDJSeries HNGJ

$45.78List $55.88 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 3849320 is a HNGJ0905ANFNLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeHNGJ535ANFNLDJ
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleSharp
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNGJ
Iso codeHNGJ0905ANFNLDJ
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0905ANFNLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Maximum depth of cut0.3770
Multi use toolYes
Number of cutting edges12
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
