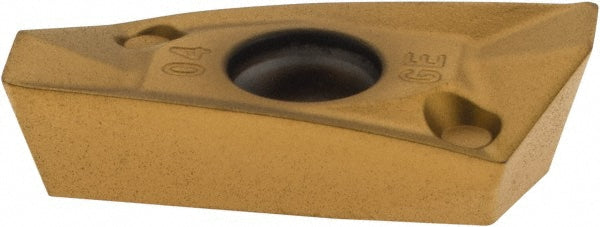

EDPT140404PDSRGE Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3855210
MFR# 3855210ISO/ANSI# EDPT140404PDSRGECat# EDPT140404PDSRGESeries EDPT
$26.97List $32.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3855210 is a EDPT140404PDSRGE solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1404SGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 1-14
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.3230
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1404
Insert styleEDPT
Iso codeEDPT140404PDSRGE
Length0.6861
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140404PDSRGE
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3228
