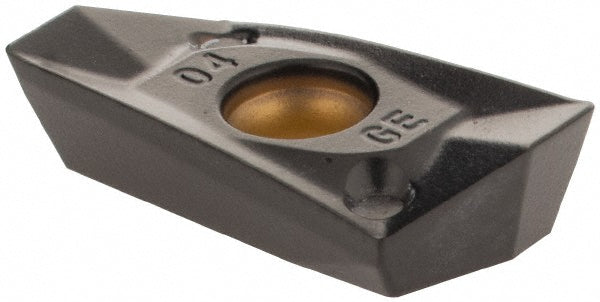

EDPT140404PDSRGE Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3855211
MFR# 3855211ISO/ANSI# EDPT140404PDSRGECat# EDPT140404PDSRGESeries EDPT
$28.01List $34.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3855211 is a EDPT140404PDSRGE solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP1404SGE
Chip breakerGE
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityMill 1-14
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3230
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1404
Insert styleEDPT
Iso codeEDPT140404PDSRGE
Length0.6861
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140404PDSRGE
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2729
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1751
Thickness range0.1750 to 0.1850
Width0.3230
