Kennametal

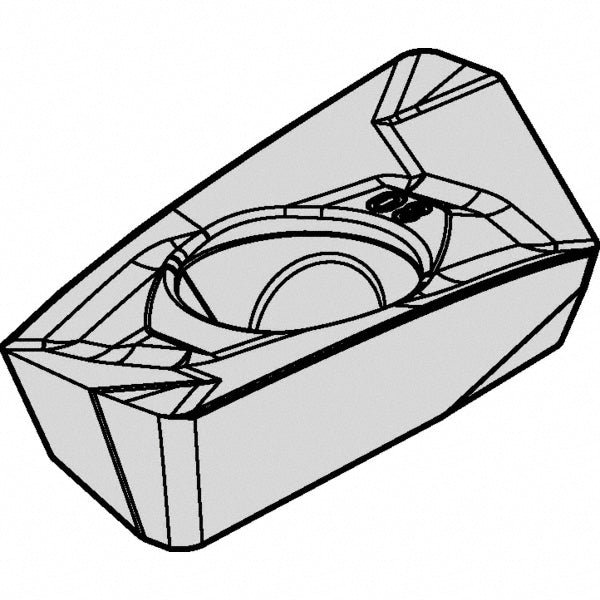

EDPT180508PDSRGE Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 3858115
MFR# 3858115ISO/ANSI# EDPT180508PDSRGECat# EDPT180508PDSRGESeries EDPT
$24.77List $30.24
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3858115 is a EDPT180508PDSRGE solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP1808SGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-18
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.4210
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1808
Insert styleEDPT
Iso codeEDPT180508PDSRGE
Length0.8550
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180508PDSRGE
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2146
Thickness range0.2000 to 0.2200
Width0.4213
