0.5000" 3-Flute Solid Carbide Single End Mill - Kennametal 3866202

Kennametal

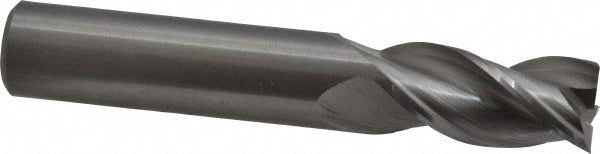

0.5000" 3-Flute Solid Carbide Single End Mill - Kennametal 3866202

MFR# 3866202Series AADE

$116.04List $148.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Kennametal 3866202 is a 0.5000 3-flute Solid Carbide (K600) single end mill. 1 length of cut. Series AADE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1
Length typeRegular
Material gradeK600
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Variable helixNo
Variable indexNo
