Kennametal

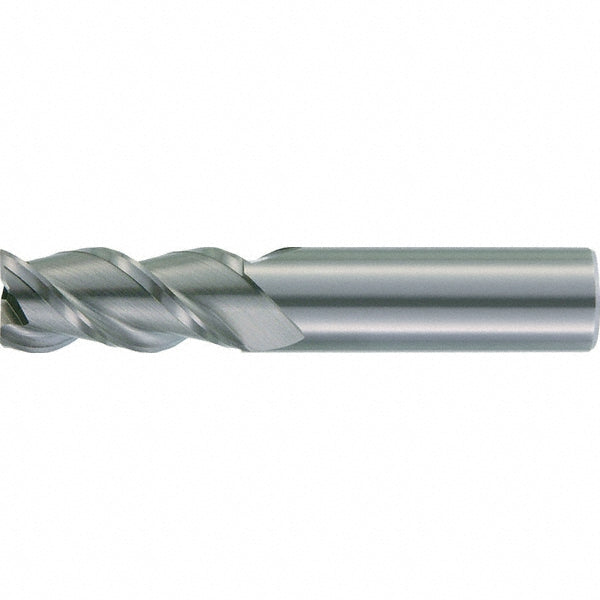

3/16" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3870452

MFR# 3870452Series AADE

$43.30List $55.54 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3870452 is a 3/16 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 3 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; ER Single Angle Standard Collets

Helix styleHigh

Length of cut in3/4

Length typeLong

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in3/16

Number of flutes3

Overall length in3

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
