Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 3871116
MFR# 3871116Cat# A4R0300M3SP00GMPSeries A4
$39.37List $48.06
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

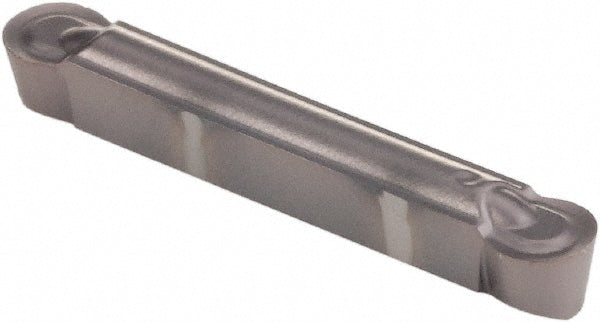

The Kennametal 3871116 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0591
Cutting height0.0960
Cutting width0.1181
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size0300
Insert styleR
Manufacturers catalog numberA4R0300M3SP00GMP
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0990
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolYes
Overall length0.7874
