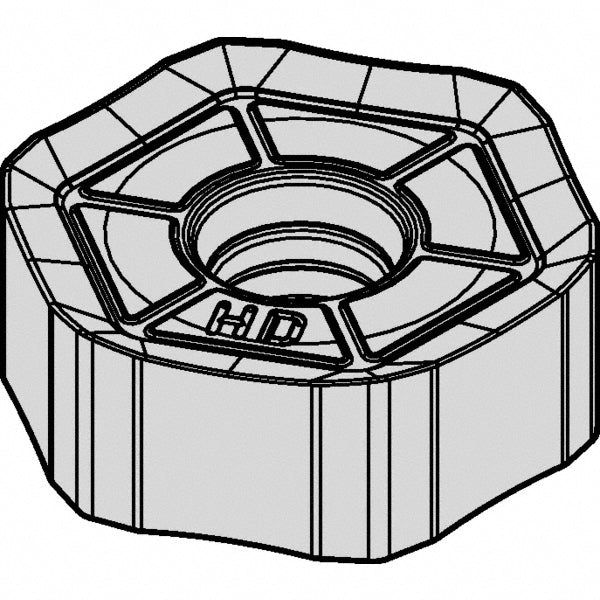

HNGJ0905ANSNHD Solid Carbide Insert, Grade KCPM20, TiN - Kennametal 3873498
MFR# 3873498ISO/ANSI# HNGJ0905ANSNHDCat# HNGJ0905ANSNHDSeries HNGJ
$46.88List $57.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCPM20
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3873498 is a HNGJ0905ANSNHD solid carbide indexable insert, grade KCPM20, TiN coated. Suited for steel, stainless steel, cast iron, hard material.
Specifications
Ansi codeHNGJ535ANSNHD
Chip breakerHD
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNGJ
Iso codeHNGJ0905ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0905ANSNHD
Manufacturer gradeKCPM20
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Maximum depth of cut0.3383
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2151
Thickness range0.2000 to 0.2200
Width in5/8
