Kennametal

3/4" 2-Flute Solid Carbide Corner Radius End Mill - Kennametal 3876629

MFR# 3876629Series AADF

$257.82List $330.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

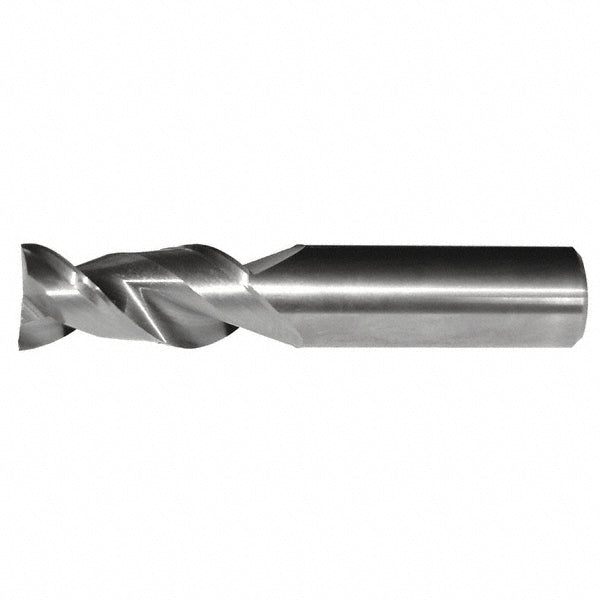

The Kennametal 3876629 is a 3/4 2-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 4 overall length. Series AADF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A

Helix styleHigh

Length of cut in1

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in3/4

Mill diameter tolerance+0.000000/-0.000510 in

Number of flutes2

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
