Carbide Insert, Grade KC7410, AlCr - Kennametal 3884490

Kennametal

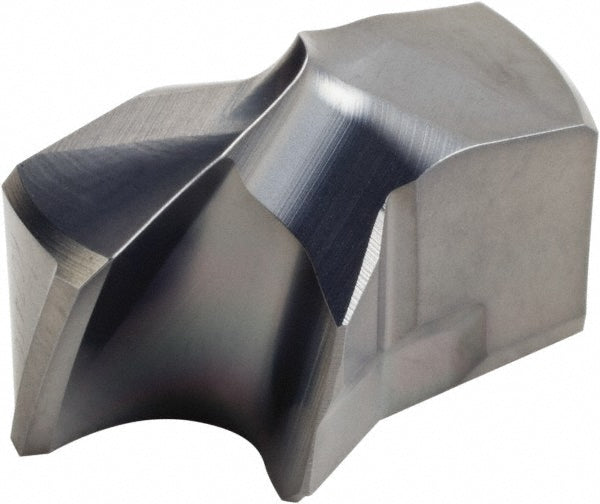

Carbide Insert, Grade KC7410, AlCr - Kennametal 3884490

MFR# 3884490Series KSEM

$219.32List $267.71 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7410
CoatingAlCr

Description

The Kennametal 3884490 is a carbide indexable insert, grade KC7410, AlCr coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlCr
Coating processPVD
Coolant throughNo
Cutting diameter in1
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5000
Height in1/2
Included angle degree140
Insert geometryHPCCL
Insert holding methodClamp
Insert seat size5
Iso numberKSEM1000HPCCL
Manufacturer gradeKC7410
Material gradeK15
Number of flutes2
Overall length projection0.5000
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
