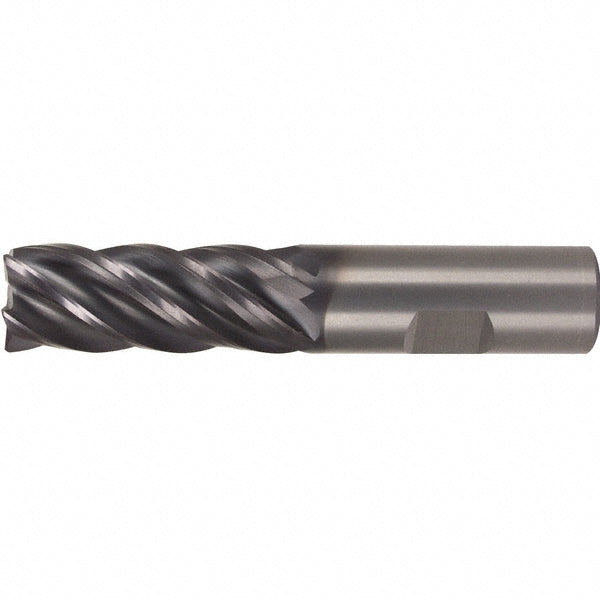

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 3899196

MFR# 3899196Cat# UCDE750J5BRASeries UCDE

$540.96List $693.81 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 3899196 is a 3/4 5-flute Solid Carbide (KC643M) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series UCDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-1/2

Length typeStandard

Manufacturers catalog numberUCDE750J5BRA

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeKC643M

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes5

Overall length in4

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in1-1/2

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
