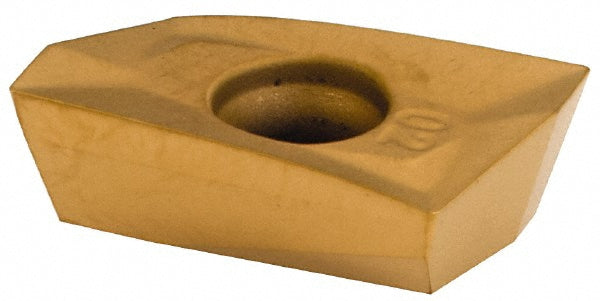

EDCT10T302PDERLD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3959611

Kennametal

EDCT10T302PDERLD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3959611

MFR# 3959611ISO/ANSI# EDCT10T302PDERLDCat# EDCT10T302PDERLDSeries EDCT

$28.63List $34.95 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 3959611 is a EDCT10T302PDERLD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEC1002ELD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Hole diameter0.1181
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T302
Insert styleEDCT
Iso codeEDCT10T302PDERLD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T302PDERLD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.3383
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width in17/64
