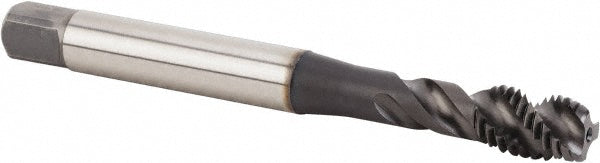

M10x1.5 Metric Powdered Metal Tap, Multi-layer - Kennametal 4026223
MFR# 4026223Series T631
$114.71List $147.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingMulti-layer
Description
The Kennametal 4026223 is a Metric Powdered Metal tap with a Multi-layer finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6HX
Coating finishMulti-layer
Coolant throughYes
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationNon-Ferrous Metal; Stainless Steel
Neck length0.9449
Number of flutes3
Overall length3.9370
Primary workpiece materialSteel; High-Temp Alloy
Shank diameter0.3937
Tapping depth1.5354
Thread directionRight Hand
Thread length0.5906
Thread size (mm)M10x1.5
Thread standardMetric
