Kennametal

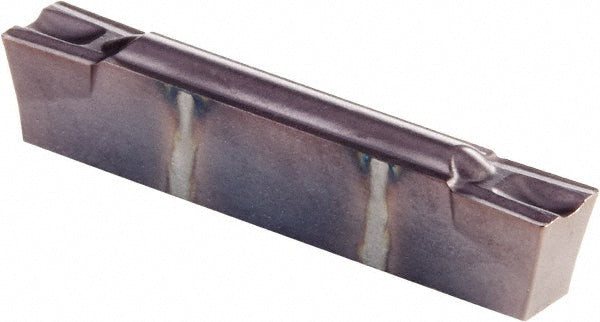

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4034774
MFR# 4034774Cat# A4G0305M03U02GMPSeries A4
$35.53List $43.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4034774 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting height0.1580
Cutting width0.1201
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size0305
Insert styleG
Manufacturers catalog numberA4G0305M03U02GMP
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7913
