Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4034776
MFR# 4034776Cat# A4G0305M03U04GMPSeries A4
$35.53List $43.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

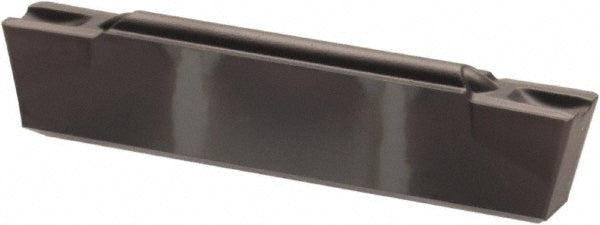

The Kennametal 4034776 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1201
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size0305
Insert styleA4
Lead angle0
Manufacturers catalog numberA4G0305M03U04GMP
Manufacturer gradeKCU10
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Measurement typeDecimal Inch
Multi use toolYes
