Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4034794
MFR# 4034794Cat# A4G0605M06U08GMNSeries A4
$45.00List $54.93
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

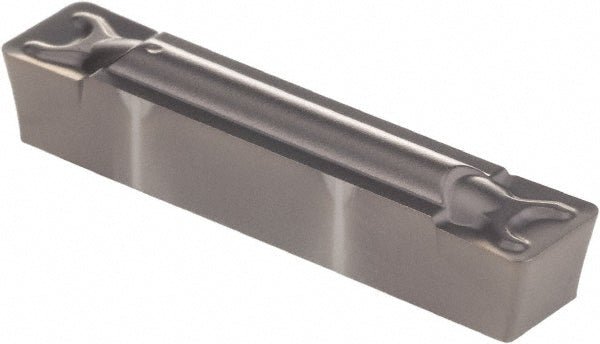

The Kennametal 4034794 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Cutting height0.2250
Cutting width0.2382
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size0605
Insert styleG
Manufacturers catalog numberA4G0605M06U08GMN
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1929
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length1.181
