Kennametal

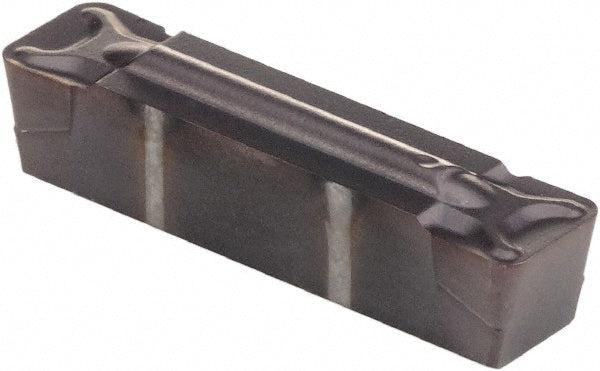

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4034809
MFR# 4034809Cat# A4G187I04P2GMNSeries A4
$43.52List $53.12
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4034809 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Cutting height0.1870
Cutting width0.1874
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size187
Insert styleG
Manufacturers catalog numberA4G187I04P2GMN
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7874
