Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4034817
MFR# 4034817Cat# A4R0400M04P00GMPSeries A4
$43.45List $53.03
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

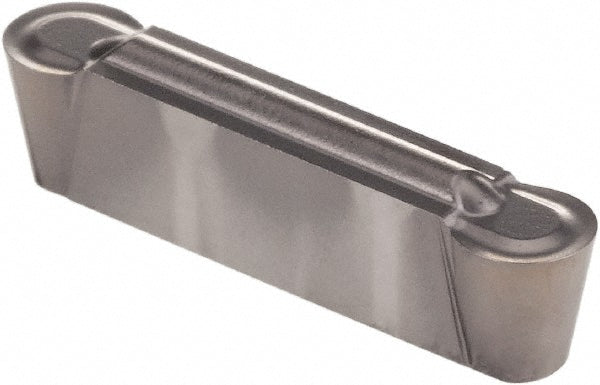

The Kennametal 4034817 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0787
Cutting height0.1870
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size0400
Insert styleR
Manufacturers catalog numberA4R0400M04P00GMP
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1339
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7894
