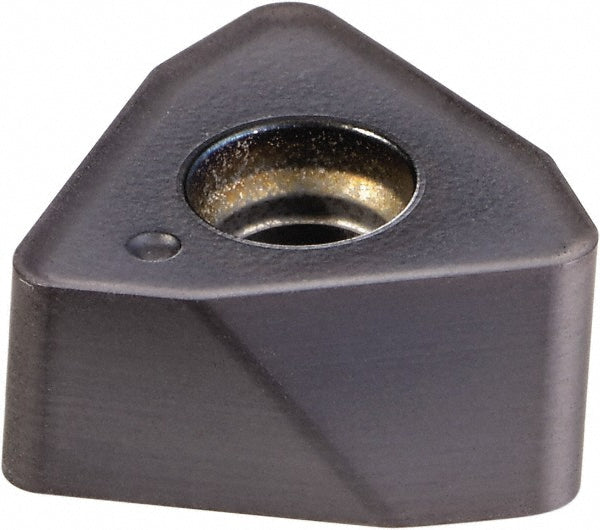

WOEJ090512SRGD Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 4034882
MFR# 4034882ISO/ANSI# WOEJ090512SRGDCat# WOEJ090512SRGDSeries WOEJ
$37.44List $45.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4034882 is a WOEJ090512SRGD solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeWOEJ090512SRGD
Chip breakerGD
Coating finishAlTiN
Coating processPVD
Corner radius0.0480
Cutter series compatibilityKenFeed
Cutting edge styleHoned T-Land
Hole diameter0.1402
Included angle degree80
Inscribed circle0.3500
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code090512
Insert styleWOEJ
Iso codeWOEJ090512SRGD
Length0.4598
Length range0.4500 to 0.5000
Manufacturers catalog numberWOEJ090512SRGD
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2130
Thickness range0.2000 to 0.2200
Width0.3500
