Kennametal

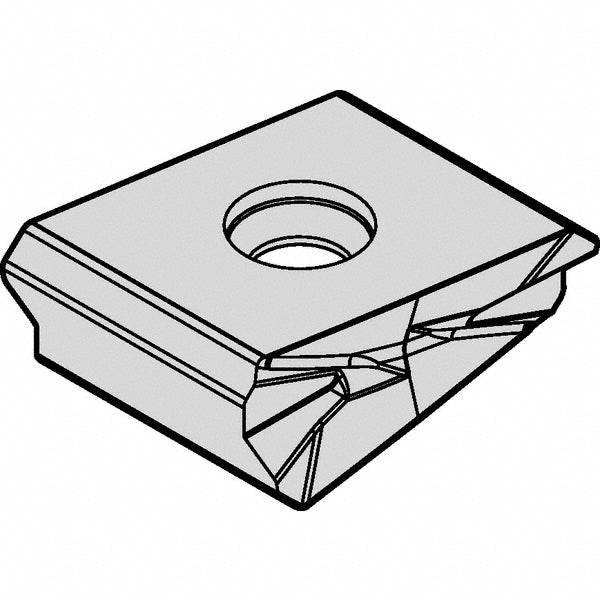

LNPU2410ANSRHD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 4038005
MFR# 4038005ISO/ANSI# LNPU2410ANSRHDCat# LNPU2410ANSRHDSeries LNPU
$65.46List $79.90
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 4038005 is a LNPU2410ANSRHD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNPU863ANSRHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMEGA45
Cutting edge styleHoned T-Land
Hole diameter0.2756
Included angle degree90
Inscribed circle0.9850
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size8
Insert size code863
Insert styleLNPU
Iso codeLNPU2410ANSRHD
Length1.1420
Length range1.0000+
Manufacturers catalog numberLNPU2410ANSRHD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3937
Thickness range0.3500 to 0.5000
Width0.9850
