Kennametal

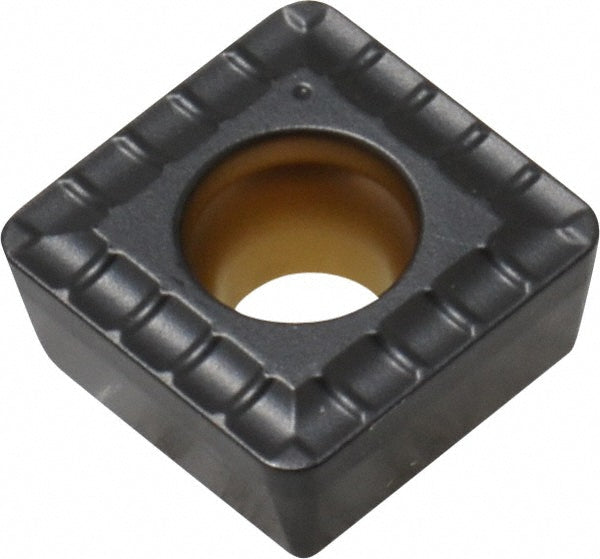

0.3690" IC Carbide Insert, Grade KCU25, TiCN - Kennametal 4040138
MFR# 4040138
$29.22List $35.67
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 4040138 is a carbide indexable insert, grade KCU25, TiCN coated.
Specifications
ChipbreakerMD
Coating finishTiCN
Coating processCVD
Corner radius0.0390
Hole diameter0.1417in
Inscribed circle0.3690
Insert materialCarbide
Insert size09T310
Insert styleSPPX
Manufacturer gradeKCU25
Material gradeC2; C6
Thickness0.1563
