Kennametal

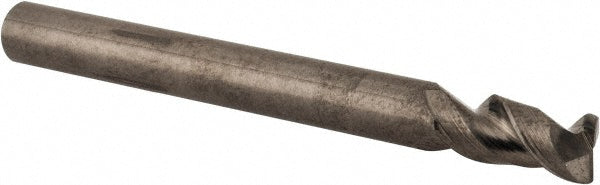

3/16" 2-Flute Solid Carbide Corner Radius End Mill - Kennametal 4041061

MFR# 4041061Series ABDF

$46.27List $59.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 4041061 is a 3/16 2-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3/8 length of cut, 2 overall length. Series ABDF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets

Helix styleHigh

Length of cut in3/8

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in3/16

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes2

Overall length in2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank diameter tolerance+0.00000/-0.00031 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
