Kennametal

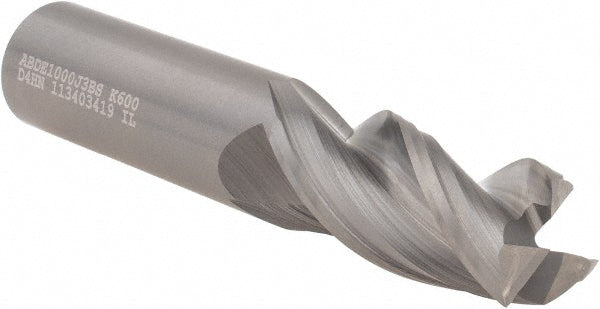

1" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 4041098

MFR# 4041098Series ABDE

$365.93List $469.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 4041098 is a 1 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 2 length of cut, 5 overall length. Series ABDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A; HC-CV Form AD; HC-CV Form AD

Helix styleHigh

Length of cut in2

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1

Mill diameter tolerance+0.000000/-0.000510 in

Number of flutes3

Overall length in5

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
