Kennametal

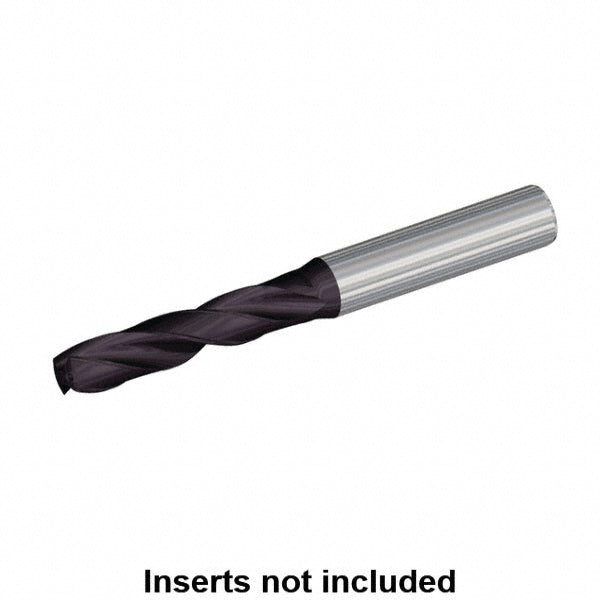

0.0945" Solid Carbide Stub Drill Bit, TiAlN, 140° point - Kennametal 4042539
MFR# 4042539Series B976Z
$104.10List $133.31
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 4042539 is a 0.0945" Solid Carbide Stub drill bit with a TiAlN finish, 140° point. Series B976Z.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit size0.0945
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle140
Drill point length0.0150
Flute by diameter ratio3xD
Flute length0.6299
Flute typeRegular Spiral
Maximum drilling depth0.4331
Number of flutes2
Overall length1.9685
Point typeStandard
Shank diameter0.1181
Shank length1.1024
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
