Kennametal

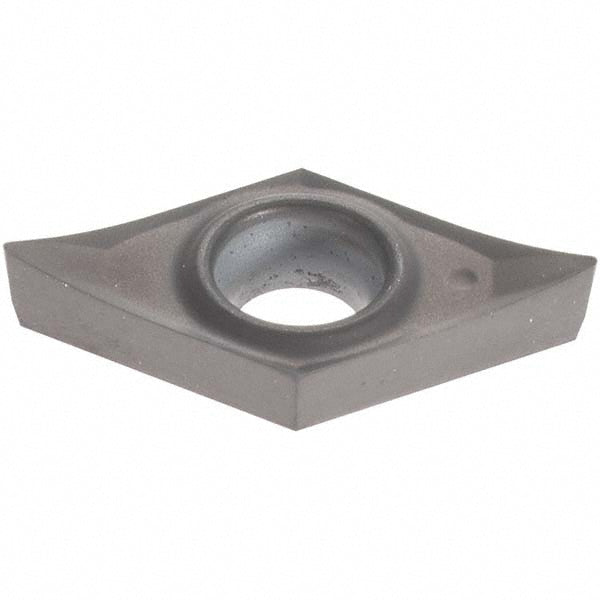

DCGT070202HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045237
MFR# 4045237ISO/ANSI# DCGT070202Series Screw-On
$28.31List $34.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045237 is a DCGT070202HP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDCGT21505
Ansi size code21505
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle55
Industry standard numberDCGT21505HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21505
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070202HP
Iso insert codeDCGT070202
Iso size code070202
Length range0.6000 - 0.6500
Manufacturers catalog number4045237
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2033
Maximum depth of cut frac in13/64
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
