Kennametal

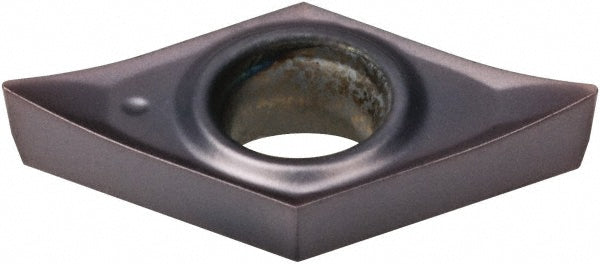

DCGT11T304HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045263
MFR# 4045263ISO/ANSI# DCGT3251HPSeries Screw-On
$30.91List $37.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045263 is a DCGT11T304HP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerHP
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55
Industry standard numberDCGT3251HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9130
Insert materialCarbide
Insert shapeDiamond
Insert size code3251
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304HP
Length range0.7000 - 10.0000
Manufacturers catalog number4045263
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.3040
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
