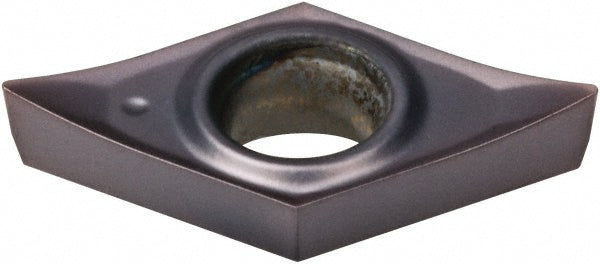

DCGT11T308HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045264

Kennametal

DCGT11T308HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045264

MFR# 4045264ISO/ANSI# DCGT3252HPSeries Screw-On

$25.23List $30.80 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4045264 is a DCGT11T308HP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerHP
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55
Industry standard numberDCGT3252HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond
Insert size code3252
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T308HP
Length range0.7000 - 10.0000
Manufacturers catalog number4045264
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
