Kennametal

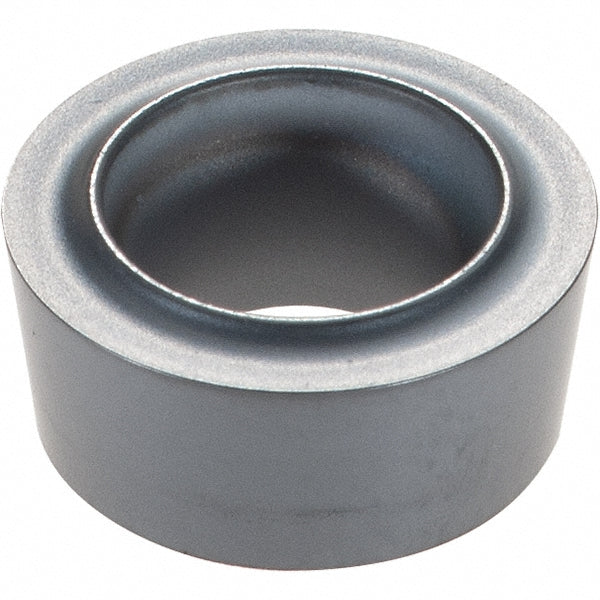

RCMT09T300 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045293
MFR# 4045293ISO/ANSI# RCMT325Series Screw-On
$20.89List $25.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045293 is a RCMT09T300 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerCommon
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in3/16
Cutting edge styleHoned
Full radiusYes
Hole diameter0.1732
Included angle360
Industry standard numberRCMT325
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeRound
Insert size code32
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT09T300
Length range0.3000 - 0.4000
Manufacturers catalog number4045293
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1249
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
