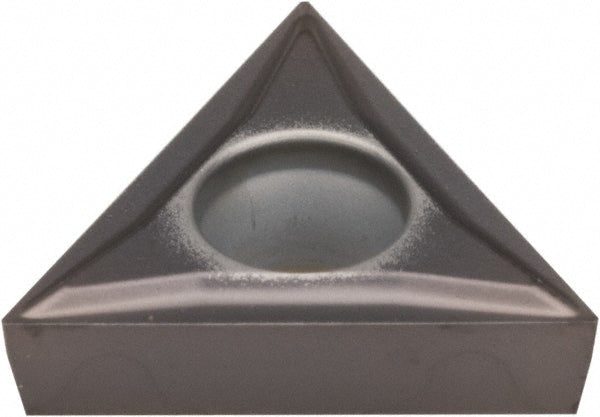

TCGT16T308LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045319

Kennametal

TCGT16T308LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045319

MFR# 4045319ISO/ANSI# TCGT16T308Series Screw-On

$35.71List $43.58 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4045319 is a TCGT16T308LF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTCGT3252
Ansi size code3252
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle60
Industry standard numberTCGT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3252
Insert styleTCGT
Insert thickness in5/32
Iso codeTCGT16T308LF
Iso insert codeTCGT16T308
Iso size code16T308
Length range0.6000 - 0.6500
Manufacturers catalog number4045319
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
