Kennametal

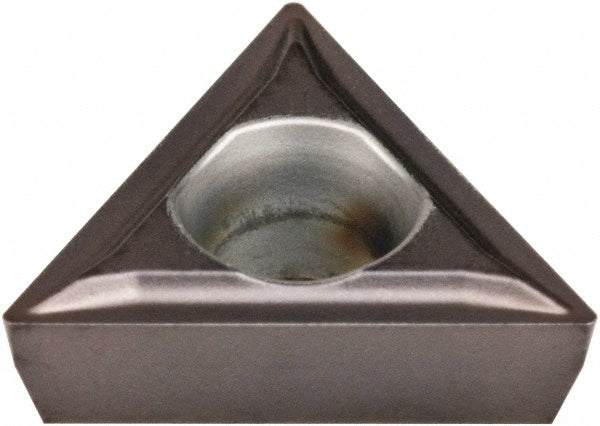

TPGT110208LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045329
MFR# 4045329ISO/ANSI# TPGT2152LFSeries Screw-On
$29.99List $36.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045329 is a TPGT110208LF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle60
Industry standard numberTPGT2152LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code2152
Insert styleTPGT
Insert thickness in3/32
Iso codeTPGT110208LF
Length range0.4000 - 0.5000
Manufacturers catalog number4045329
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
