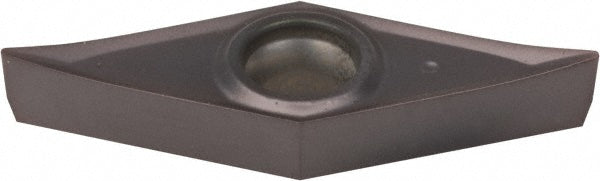

VBGT110302HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045335

Kennametal

VBGT110302HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045335

MFR# 4045335ISO/ANSI# VBGT110302Series Screw-On

$32.31List $39.44 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4045335 is a VBGT110302HP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVBGT2205
Ansi size code2205
Chip breakerHP
Chip breaker operationFinishing
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle35
Industry standard numberVBGT2205HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2205
Insert styleVBGT
Insert thickness in1/8
Iso codeVBGT110302HP
Iso insert codeVBGT110302
Iso size code110302
Length range0.7000 - 10.0000
Manufacturers catalog number4045335
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2903
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
